Length 1m - 8m Micro Alloyed Steel Rod For Mechanical Manufacturing

Brand Name : HY

Certification : ISO9001:2008

Place of Origin : China

MOQ : 1 tons

Price : Negotiation

Payment Terms : T/T, L/C

Supply Ability : 30tons a day

Delivery Time : 30days

Packaging Details : Anti rust oil to be applied on material and each rod to be packed in paper sleeve

Name : Chrome piston rod

Material : Micro Alloy Steel

Supply condition : Chrome plating

Chrome thickness : 20 - 30 micron

Diameter : 35mm - 140mm

Surface roughness : Ra≤0.2micron and Rt≤2micro

Contact Now

Length 1m - 8m Micro Alloyed Steel Rod For Mechanical Manufacturing

Product Description
1. ISO9001:2008, stable and uniform mechanical properties, the directly turning saves the logistics cost.
2. Save manufacturing expenses and avoid waste in the tempering process.
3. Shortened processing periods, enhance productivity and reduce the occupied capital
4. The mechanical property is correspond to quenched and tempered 42CrMo4, 40Cr and CK45 or over
    them and very uniform on the whole cross section.
5. It can be used for manufacturing injuection molding machine draglink, engineering machinery push
    rod and hydraulic prop with the feature that hardened and tempered steel mechanical property
    needless quenched and tempered process.
6. Production no quenched and tempered process meets the requirements of environmental protection

Detailed Description

1. MATERIAL: HY4700, HY4520

2. CHEMICAL COMPOSITION(%)

Material	C%	Mn%	Si%	S%	P%	V%	Ni	Cr%	Mo	Cu
HY4700	0.38-0.45	1.20 ~1.60	0.30~0.50	≤0.035	≤0.020	0.05～0.15	≤0.25	0.10～0.20	≤0.15	0.25
HY4520	0.40 ~0.48	0.80 ~1.40	0.15 ~0.35	≤0.035	≤0.035	≤0.15	≤0.25	≤0.25	≤0.15	≤0.25

3. MECHANICAL PROPERTIES

Material		MECHANICAL PROPERTIES					Surface hardness(HBW)
Material		Rm(MPa)	Rel(MPa)	A%	Z%	KU2(J)
HY4700	Φ35 - Φ100	900 - 1100	≥650	≥16	≥35	≥39	270-340
HY4700	＞Φ100 - Φ140	850 - 950	≥600	≥16	≥35	≥39	270-340
HY4520	Φ40 - Φ100	750 - 900	≥520	≥19	≥40	≥39	230-290
HY4520	＞Φ100～Φ140	750 - 900	≥520	≥17	≥35	≥39	230-290

4. SUPPLY CONDITION
    Ground  and  chrome plated
5. CHROME THICKNESS
     20 to 30 micron
6. TOLERANCES ON DIA
     ISO f7 on the diameter
7. STRAIGHTNESS
   ≤0.2MM/M
8.OVALITY
    Half of the tolerance ISO f7
9 .SURFACE HARDNESS
     850-1150HV (vickers 100g)
10. SURFACE ROUGHNESS
     Ra≤0.2 micron and  Rt≤2 micron
11. COHESION

No craks,breaking or detaching after thermic shock(warming up at 300 celsius degrees

and cooling in water)
12. CORROSION RESISTANCE
Test in natural salt spray according to ASTM B 117-120hours
Results evaluation according to ISO 4540 RATING 7-10

13. WELDABILITY
Good

14.POROSITY
      Test according to ISO 1456/1458 and result yaluation according to ISO 4540 rating 8-10
15. PACKING
     Anti rust oil to be applied on material and each rod to be packed in paper sleeve
16. CERTIFICATE
      All certificate related with material heat treatment and plating is required

Length 1m - 8m Micro Alloyed Steel Rod For Mechanical Manufacturing

Product Tags:

Micro Alloyed Steel Rod

Mechanical Manufacturing microalloyed steels

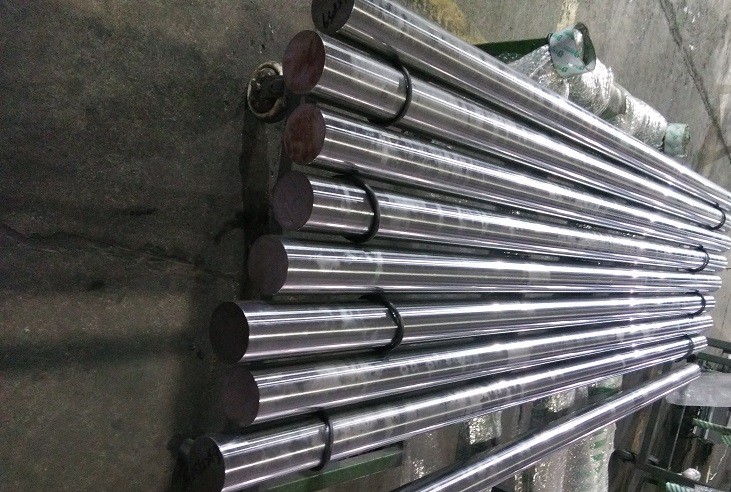

Length 1m - 8m Micro Alloyed Steel Rod For Mechanical Manufacturing Images
